99L SUS304 3000W Automatic Ultrasonic Cleaner 2mm Tank With Agitation Drying

Ask Lasest Price
Brand Name :	Skymen
Model Number :	JTM-3060AD
Certification :	RoHS, CE, FCC, SGS
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	800 pcs per month
Delivery Time :	In Stock

Add to Cart

Product Details
Company Profile

99L SUS304 3000W Automatic Ultrasonic Cleaner 2mm Tank With Agitation Drying

Automated Multi-Tank Ultrasonic Cleaner With Cleaning, Agitation, Drying Functions

The automatic cleaning machine we have developed, adopts a PLC system in automatic cleaning. The machine has five functions: ultrasonic cleaning, cold or hot water spraying, drying and greasing. The clinical applications show that the machine with a good effectiveness is suitable for the cleaning of many surgical instruments. It also raises working efficiency, cuts down on the cost of repair and maintenance and reduces the injury and infection to nurses caused by manual cleaning, satisfying the needs of clinical applications.

Specification sheet:

1	Model	JTM-3060AD
2	1st Chamber	Function	Ultrasonic cleaning + Filter+ Hot water cleaning
		Ultrasonic Frequency	28/40kHz (other frequency can be customized)
		Tank Material	SUS304 (SUS316 can be customized)
		Thickness of tank	2mm
		Inner tank dimension	550450400mm
		Tank Capacity	99L
		Transducer	30pcs
		Ultrasonic Power	1500W
		Heating Power	3000W
		Time setting of Ultrasonic	0~99 hours
		Temperature setting	Room temperature ~ 95°C adjustable
		Drain value	Yes
		Water inlet/outlet	Yes
		Filter	1 set, connect with 1st tank
		Size of filter tank	500300300mm
		Filtet element precision	5/10μ
		Generator	1pcs
		Generator power control	1500W
		Basket	Yes
		Basket load	150KG
3	2nd Chamber	Function	Ultrasonic cleaning + Bubbling + Hot water cleaning
		Ultrasonic Frequency	28/40kHz (other frequency can be customized)
		Tank Material	SUS 304 (SUS 316 can be customized)
		Thickness of tank	2mm
		Inner tank dimension	550450400mm
		Tank Capacity	99L
		Transducer	30pcs
		Ultrasonic Power	1500W
		Heating Power	3000W
		Time setting of Ultrasonic	0~99 hours
		Temperature setting	Room temperature ~ 95°C adjustable
		Drain value	Yes
		Water inlet/outlet	Yes
		Bubbling system	Yes, air compressor is provided by user
		Generator	1pcs
		Generator power control	1500W
		Basket	Yes
		Basket load	150KG
3	3rd Chamber	Function	Hot air drying tank
		Inner tank dimension	550400350mm
		Turbines power	750W
		Dryer power	3000W
4	Working way of machine	Working way	Full automatic
		Loading and unloding platform	Yes
		Moving way of basket	By mechanical arm
		Control way	PLC touch screen
5	Warranty	1 year warranty for spare parts, all life technical support
6	Certificate	CE, RoHS; FCC, REACH
7	Production time	35 working days after deposit

Cleaning process: (cleaning direction: from left to right)

Working way

The entire process of putting the basket into the cleaning tank, removing the basket and moving the basket between the tanks is automatically completed by a single-arm manipulator. This ultrasonic cleaning machine has a total of 3 working tanks, plus 1 loading and unloading station, a total of 4 stations .

Same series with different size for your choice:

Model	Size of every tank	Tank Volume	Ultrasonic Power	Heating Power of Ultrasonic tank	Heating Power of drying tank	Transducer
Model	LWH (mm)	(L)	(W)	(W)	750W	(pcs)
JTM-3024AD	500X300X250	38L*3	600W	1500W*2	750W	24pcs
JTM-3036AD	500X350X300	53L*3	900W	1500W*2	750W	36pcs
JTM-3048AD	550X400X350	77L*3	1200W	3000W*2	750W	48pcs
JTM-3060AD	550X450X400	99L*3	1500W	3000W*2	750W	60pcs
JTM-3072AD	600X500X450	135L*3	1800W	4500W*2	750W	72pcs
JTM-3096AD	700X500X500	175L*3	2400W	6000W*2	750W	96pcs
JTM-3120AD	800X600X550	264L*3	3000W	6000W*2	750W	120pcs
JTM-3144AD	1000X600X600	360L*3	3600W	9000W*2	750W	144pcs
JTM-3216AD	1000X900X600	540L*3	5400W	18000W*2	1100W	216pcs
JTM-3288AD	120001000800	960L*3	7200W	24000W*2	1500W	288pcs

Images:

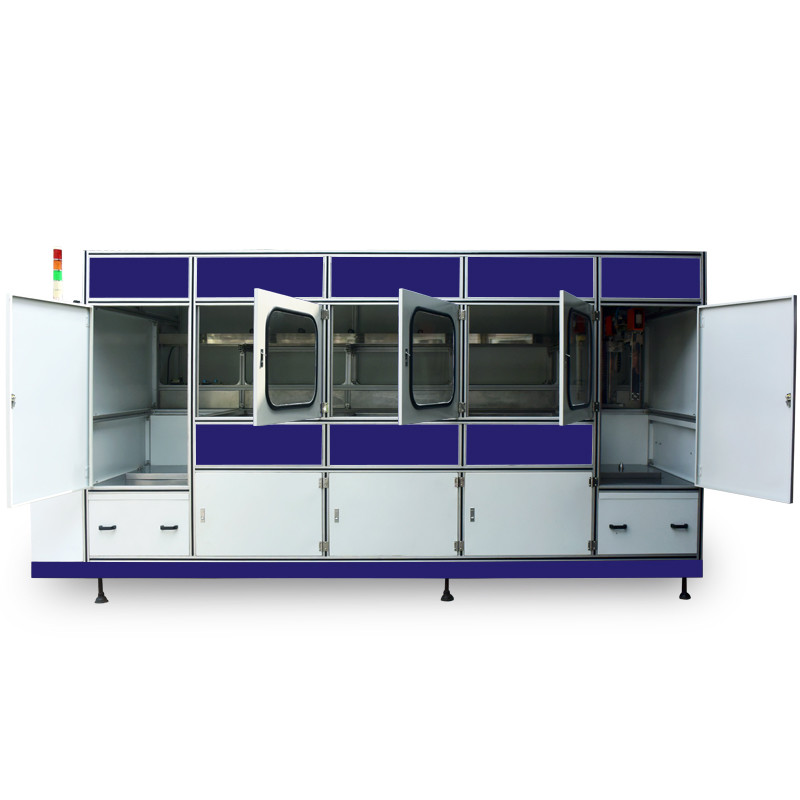

99L SUS304 3000W Automatic Ultrasonic Cleaner 2mm Tank With Agitation Drying

Clean effect:

99L SUS304 3000W Automatic Ultrasonic Cleaner 2mm Tank With Agitation Drying

History:
Skymen Cleaning Equipment Shenzhen Co., Ltd., was founded in 2007,which follows the brand development strategy of “based in Shenzhen, radiating throughout the country, expanding overseas”.
Skymen also owns a professional R&D team to keep the pace with international ultrasonic technology. A passionate and young sales team sell to the world through different channels.
